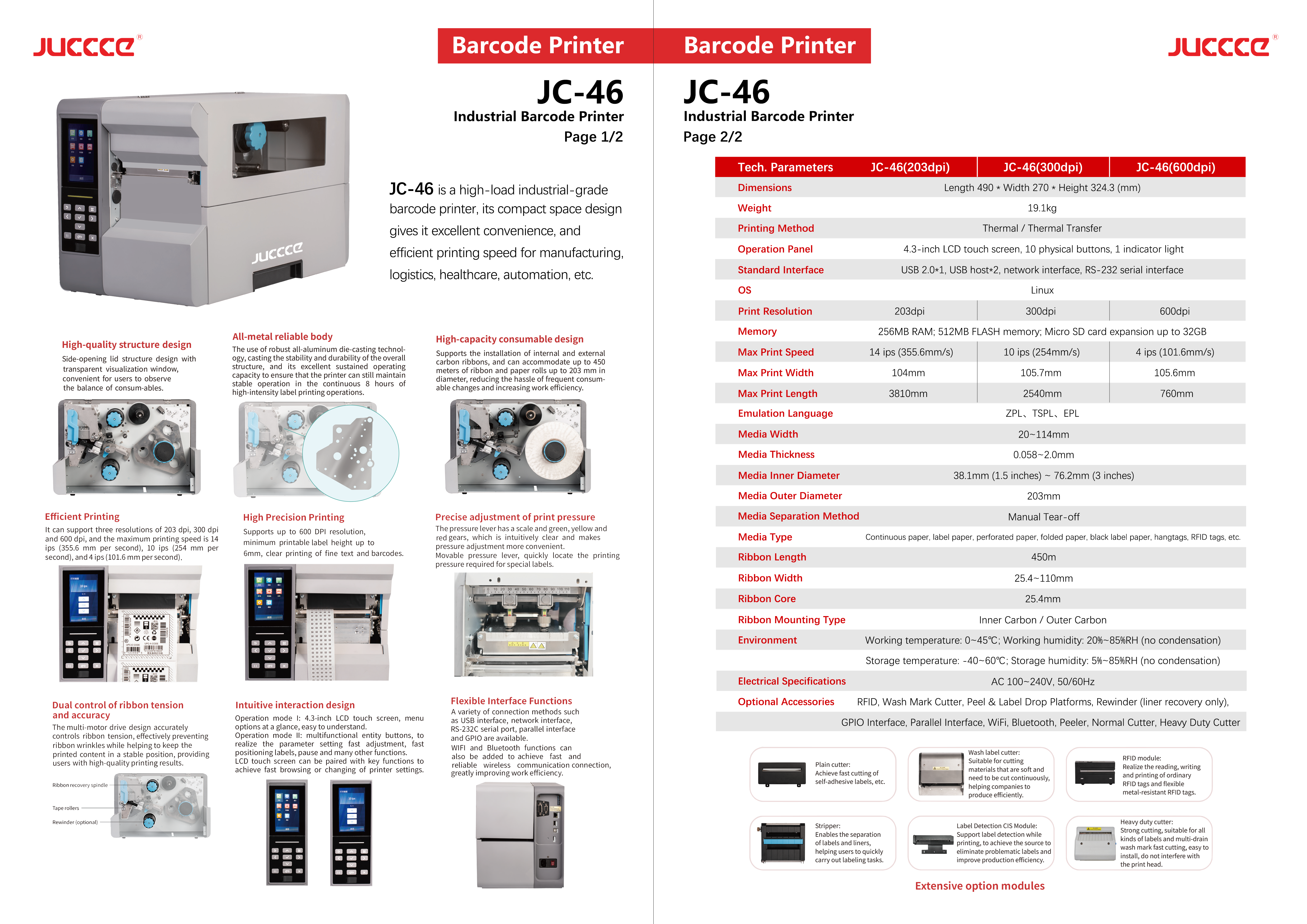

JC-46 Industrial-level Barcode Printer
JC-46 is a high-load industrial-grade barcode printer, its compact space design gives it excellent convenience, and efficient printing speed for manufacturing, logistics, healthcare, automation, etc. JC-46 has options of print accuracy, which are 203 dpi, 300 dpi and 600 dpi (The higher the dpi is, the better the print quality will be). JC-46’s maximum print width can reach 4 inches (104mm).
- Overview
- Recommended Products
JC-46 is a high-load industrial-grade barcode printer, its compact space design gives it excellent convenience, and efficient printing speed for manufacturing, logistics, healthcare, automation, etc. JC-46 has options of print accuracy, which are 203 dpi, 300 dpi and 600 dpi (The higher the dpi is, the better the print quality will be). JC-46’s maximum print width can reach 4 inches (104mm).
1.High-quality structure design.
Side-opening lid structure design with transparent visualization window, convenient for users to observe the balance of consumables.
2.All-metal reliable body.
The use of robust all-aluminum die-casting technology, casting the stability and durability of the overall structure, and its excellent sustained operating capacity to ensure that the printer can still maintain stable operation in the continuous 8 hours of high-intensity label printing operations.
3.High-capacity consumable design.
Supports the installation of internal and external carbon ribbons, and can accommodate up to 450 meters of ribbon and paper rolls up to 203 mm in diameter, reducing the hassle of frequent consumable changes and increasing work efficiency.
4.Efficient Printing.
It can support three resolutions of 203 dpi, 300 dpi and 600 dpi, and the maximum printing speed is 14 ips (355.6 mm per second), 10 ips (254 mm per second), and 4 ips (101.6 mm per second).
5.High Precision Printing.
Supports up to 600 DPI resolution, minimum printable label height up to 6mm, clear printing of fine text and barcodes.
6.Precise adjustment of print pressure.
The pressure lever has a scale and green, yellow and red gears, which is intuitively clear and makes pressure adjustment more convenient. Movable pressure lever, quickly locate the printing
pressure required for special labels.
7.Dual control of ribbon tension.
The multi-motor drive design accurately controls ribbon tension, effectively preventing ribbon wrinkles while helping to keep the printed content in a stable position, providing users with high-quality printing results.
8.Intuitive interaction design.
Operation mode I: 4.3-inch LCD touch screen, menu options at a glance, easy to understand.
Operation mode II: multifunctional entity buttons, to realize the parameter setting fast adjustment, fast positioning labels, pause and many other functions.
LCD touch screen can be paired with key functions to achieve fast browsing or changing of printer settings.
9.Flexible Interface Functions.
A variety of connection methods such as USB interface, network interface, RS-232C serial port, parallel interface and GPIO are available.
WIFI and Bluetooth functions can also be added to achieve fast and reliable wireless communication connection, greatly improving work efficiency.
We aim to help clients with the power of innovation to attain outstanding achievements.
Ningbo Juccce Intelligent Technology has been researching and developing the industry for over 22 years, committing to become an excellent service provider in the field of barcode/RFID intelligent identification technology. Our core business covers: barcode/RFID equipment and consumables (scanners, printers, PDAs, barcode/RFID labels, ribbons), RFID hardware and software system integration, machine vision, automatic labeling machines, etc. We have been awarded many national honors and international certifications, we also have more than 60 patents and software copyrights. We always focus on the needs of clients, and provide one-stop service from hardware supply to system integration with our proud technology and rich industry experience. With dedication and innovation, we continue to empower enterprises with digital transformation and smart production.
Barcode Equipment: Barcode Scanner, Barcode Printer, PDA, Industrial PC, etc.
RFID Equipment: RFID Handheld Terminal, RFID Reader, RFID Intelligent Gate, RFID Cabinet, RFID Label Printer, etc.
Automation Equipment: Machine Vision, Automatic Labeling Machine, etc.
Consumables: Barcode Labels, RFID Labels, Ribbons, etc.
